ERIS Subwoofer

Eris is a 3400 W, low frequency subwoofer designed to compliment EOS line array systems. Designed with an aperiodical enclosure which gives a flatter impedance curve and greater SPL than expected from its size. This unique porting also removes the boxy tone of reflex loading and enhances bass definition.

Eris is a wide bandwidth, ultra-high power low frequency subwoofer. Designed with total integration into EOS line array systems, this cabinet is an easy way to extend the frequency response of your system. The unique symmetrical design allows rotation of each subwoofer for both front facing or cardioid arrangements. With a usable frequency response of 25 Hz to 200 Hz (-10 dB) and a peak SPL of 141 dB this unit is a capable partner for EOS and can deliver the low frequency output at levels sound engineers expect.

The discreet HEX steel grill design with reticulated foam backing and acrylic textured paint finish achieves a high class look suitable for any application. 4 bar handles are located on each side on the enclosure, ergonomically designed for multiple carry positions.

The integrated flying hardware is a symmetrical designed for rotation of each subwoofer for both front facing and cardioid arrangements. The integrated hardware can be used for securing multiple Eris in ground stack configurations.

The rear connection plate has two 4 pin speakON® connectors fitted as standard, one input and one link. There s also ne 4 pin speakON®connector located on the front of the enclosure for convenient cardioid mode cabling. speakON® connectors are wired on pins +1-1, with pass through of pins +2-2.

Eris Subwoofer

Key Features

Exceptional low frequency of 25 Hz

4 Ohm impedance

Omni directional

Custom RAL colours available on request

N

Use in conjunction with EOS Line array for extended bass dynamics

Product Details

Design

Impedance

Power Handling (AES)

Max. Power Handling (AES)

Usable Frequency Range (-10 dB)

Dispersion

Sensitivity 2.83V / 1m

Max. SPL

2 x 18” Bi-amp Subwoofer, Progressive Loaded Reflex Subwoofer.

2 x 4 Ohm, Minimum 3.3 @ 125 Hz

1700 Watts (continuous)

3400 Watts (program)
6800 Watts (peak 10 ms)

25 Hz -200 Hz

Omni

103 dB

135 dB cont
141 dB peak

Frequency Response (±3dB)

Dimensions (H x W x D mm)

Weight (kg)

SYSTEM OPERATION

Recommended Amplification

System Controller

Speaker Cables

PRODUCT FEATURES

Components

Crossover

Connectors

Shipping Weight (kg)

Colour

Options

Rigging

HARDWARE

Fitted as Standard

Optional

Additional Descriptive Data

Recommended Filter Settings.

29 Hz – 170 Hz

589.3 x 1156 x 900

106

Spacer Text

1700 – 3500 Watts

Ohm DSP Solutions

Min 2 x 4 mm2,
Preferred 2 x 6 mm2

Spacer Text

2 x 18” low frequency driver

Passive – N/A
Active – * LPF – 110 Hz / HPF – 24 Hz
* All presets from the OHM library.

3 x 4 pole speakON® connectors, (pins 1± driver 1, pins 2± driver 2)

107 (1 cabinet per carton)

Black

Available in white or RAL colours on request

Foot and cup stacking system, Eris Sub Flying System

Spacer Text

Eris Sub dolly board, Eris Sub flying array frame

Eris Sub dolly board, Eris Sub flying array frame

Birch plywood construction, with durable scratch resistant black textured Polyurea paint finish, kick-proof steel grill and internal black foam with Ohm logo.

Available on the download page View here.

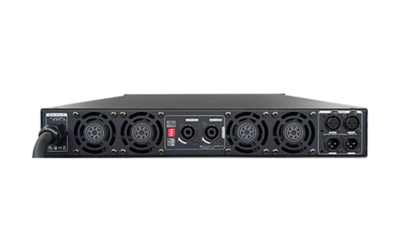

LA-4

LA-4

OHM LA amplifiers are highly reliable, rugged...

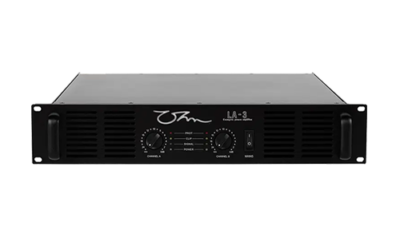

LA-3
