KM15

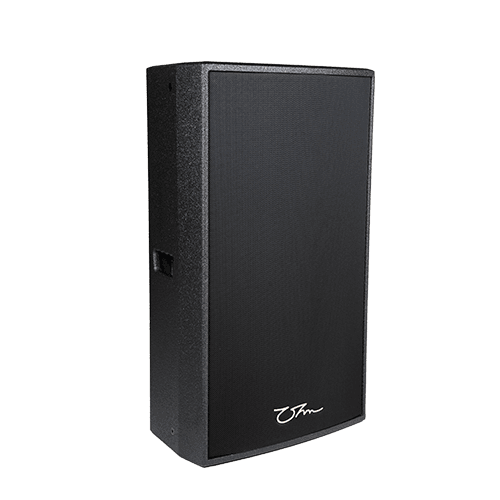

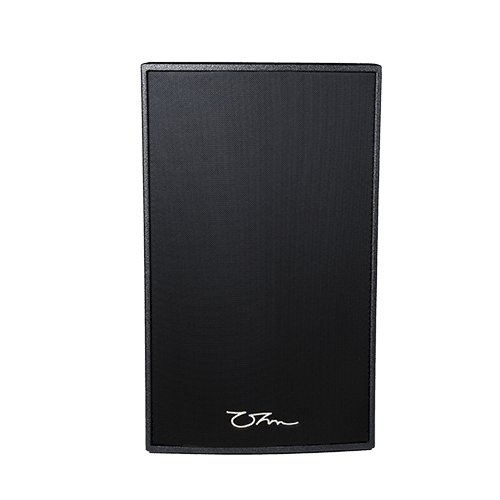

KM15 passive cabinet is designed with a 750 W, 15” woofer and 1.4” compression driver capable of 135 dB SPL, in a compact lightweight enclosure. with a dispersion of 60° x 40° and frequency response of 55 Hz.
The rear cast aluminium connection plate has two 4 pin speakON® connectors fitted as standard, one input and one link. The speakON® connectors are wired on pins +1-1, with pass through of pins +2-2.
Key Features
Hi-Fi grade components give extended 55 Hz frequency response
60° x 40° dispersion
8 Ohm impedance
Product Details
Design
Impedance
Power Handling (AES)
Max. Power Handling (AES)
Frequency Range (±3 dB)
Dispersion
Sensitivity 2.83V / 1m
Max. SPL
15″ Full Range Cabinet, Reflex Tuning
8 Ohm,
750 Watts (continuous)
3000 Watts (peak)
45 Hz-20 kHz
60° x 40°
106 dB
135 dB cont
136 dB peak
Dimensions (H x W x D mm)
Weight (kg)
SYSTEM OPERATION
Recommended Amplification
System Controller
Speaker Cables
PRODUCT FEATURES
Components
Crossover
Connectors
Shipping Weight (kg)
Colour
Options
Rigging
HARDWARE
Fitted as Standard
Optional
Additional Descriptive Data
706 x 454 x 387.5
34
Spacer Text
850 – 1600 Watts
Ohm DSP Solutions
Min – 2 x 2.5 mm2
Preferred – 2 x 4 mm2
Spacer Text
1 x 15” low frequency driver
1 x 1.4” compression driver
–
2 x 4 pole speakON® Connectors
35 (1 cabinets per carton)
Black
White or RAL colours on request. Weather resistant version available on request
–
Spacer Text
Standard Cast aluminium top hat,
–
Birch Ply construction, with durable scratch resistant black textured paint finish, kick-proof steel grill and black foam with Ohm logo.
